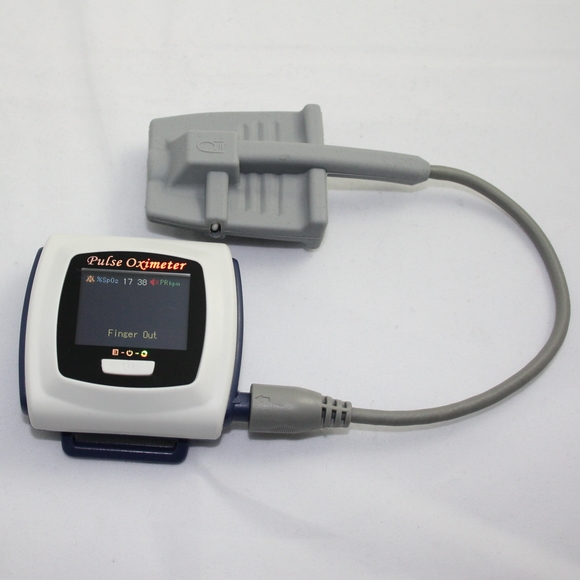

Contec Portable Babies Wrist Finger Tip Pulse Oximeter with Alarm
SpO2 LED
Quick Detail:
*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple ,low power consumption
*SpO2 value display
*Pulse rate value display, bar graph display
*Pulse waveform display
*The display mode can be changed
*Screen brightness can be changed
Description:
*A pulse rate sound indication
*With measured data overruns limits and low-voltage alarm
function,the upper/down alarm range is adjustable
*With clock function
*Battery capacity indication
*Low-voltage indication: low-voltage indicator appears before
working abnormally which is due to low-voltage,and with alarm
function
*With SpO2 value and pulse rate value of storage, the storage data can be
uploaded to computers
*Real-time data can be transmitted to computers
*Connected with an external oximeter probe
*Wireless communication function
Main performance
Display Mode: 65K Color LED display
Screen Resolution: 128*96
SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: +/-2bpm or +/-2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is
0.4%. SpO2 error is +/-4%, pulse
rate error is +/-2 bpm or +/-2% (select larger).
Resistance to Surrounding Light: The deviation between the value
measured in the condition of
man-made light or indoor natural light and that of darkroom is less
than +/-1%.
Power Consumption: less than 100mA
Voltage: DC 3.6V~4.2V
Power Supply: Voltage 3.7 rechargeable lithium battery * 1
Battery Working Hour: 20 hours
Battery working life: Charge and discharge no less than 500 times.
Safety Type: Interior Battery,BF Type

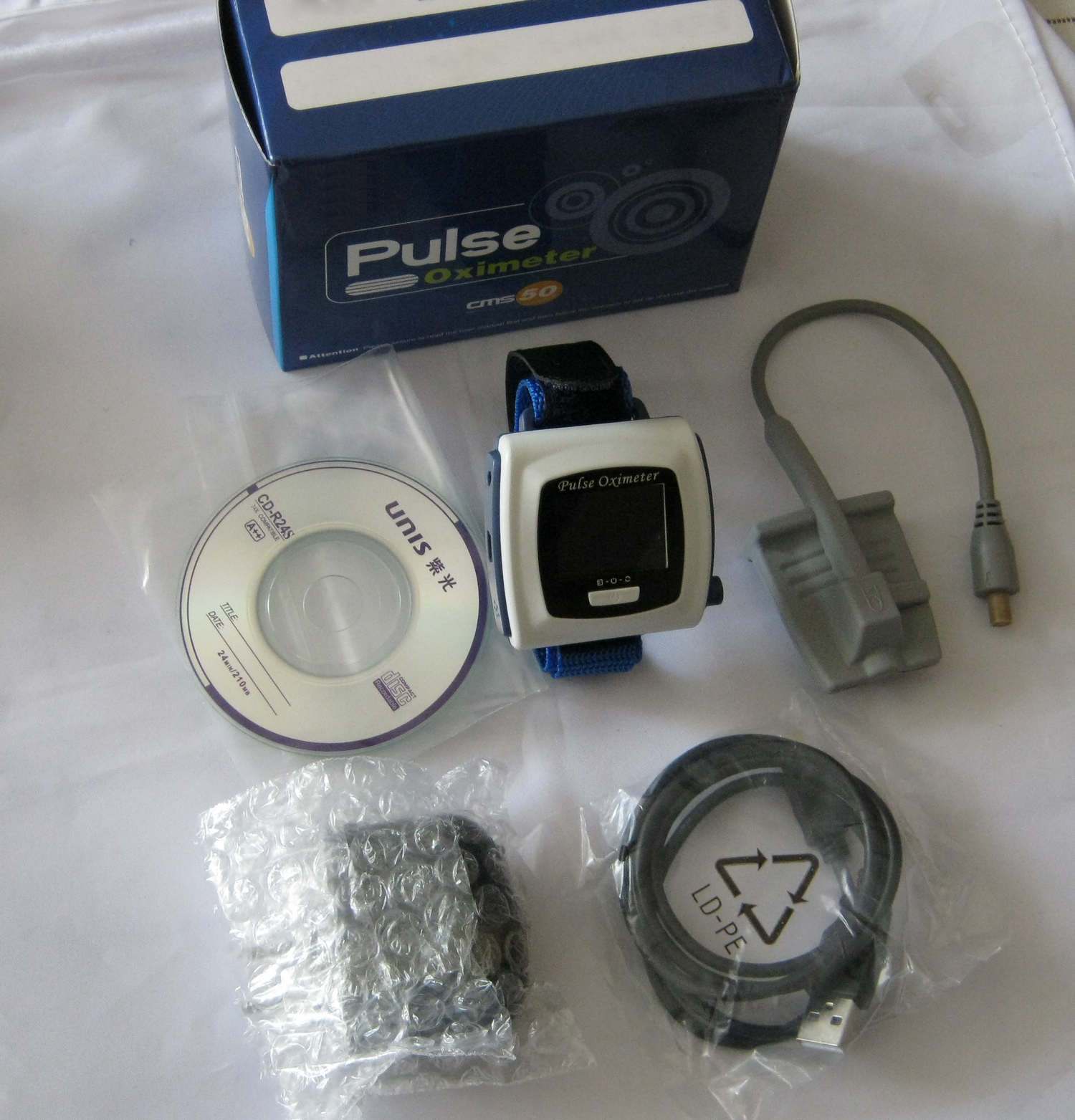

Accessories
Sell in standard:
*A user manual
*A USB line
*A wristband
*A disk (PC software)
*An adult-oximeter probe
*A power adapter (GTM41076-0605;CMS0105)
Sell in addition:
*Other oximeter probe(Refer to probe application instruction for
details and notice renewal)
Physical Identity
Dimension: 61(L) * 56(W) * 24 (H) mm
Weight: About 50g (with the lithium battery*1)
Qualification
passed FDA and CE
Applications:
The product is suitable for being used in family, hospital, oxygen
bar, community healthcare, physical care
in sports (It can be used before or after doing sports, and it is
not recommended to use the device during
the process of having sport) and etc.
Specifications:
Display Mode: | LED display |
SpO2 Measuring Range: | 0%~100%, (the resolution is 1%). |
Accuracy: | 70%~100%:±2% ,Below 70% unspecified. |
PR Measuring Range: | 30bpm~250bpm, (the resolution is 1bpm) |
Accuracy: | ±2bpm or ±2% (select larger) |
