Touch Screen 12.1 inches TFT LCD Cardiac Monitor CMS7000 Plus with
6 parameters for ICU
Introduction
This equipment with touch screen can monitor such parameters as
ECG, RESP, SpO2, NIBP, and Dual- channel TEMP.
It integrates parameter measuring module, display and recorder in
one device to form a compact and portable device.
At the same time, its built-in replaceable battery provides
convenience for patient moving.
Quick Details:
1. 12.1'' color TFT LCD
2. Standard parameters:ECG,SPO2,RESP,NIBP,TEMP,PR
3. Optional parameters: built-in printer, curving handle, moving
bracket and hanging bracket are optional
4.Built-in replaceable battery
5. Operation interface with Chinese and English
6. Optional languages: French, German, Italian, Dutch, Portuguese,
Turkish, Spanish, Poland.
Main Features:
1. Elegant appearance, clear marks, standard interface, oxygen,
trend graph, big characters, other BED
observation, which are convenient for user.
2. Be applicable for adult, pediatric and neonatal.
3. Standard parameters of ECG, RESP, NIBP, SpO2 and dual-channel
TEMP. IBP, CO2, built-in printer, curving handle, moving bracket
and hanging bracket are optional.
4. Finish all operations by touch screen or keys and knobs.
5. Operation interface with Chinese and English. (Optional
languages: French, German, Italian, Dutch, Portuguese,Turkish,
Spanish, Poland.) design with full built-in module, stable and
reliable performance.
6. 12.1'' color TFT LCD with high-resolution displays patient
parameter and waveform, and alarm, bed NO, clock, state and other
information provided by the monitor synchronously.
7. Monitoring contents, scan speed, volume and output contents can
be set optionally.
8. Storage of 480-hour trend data, and review of 40-second
holographic waveform.
9. Storage and review of 72-hour ECG waveform.
10. Function of NIBP review, storage for up to 2400 NIBP data.
11. Adopt digital SpO2 technology, which has strong
anti-interference and anti-weak filling capability.
12. Calculation of drug concentration.
13. Network: connecting with central station, other Bed observation
and software updating.
14.Connection mode:wireless and wired
15.Built-in rechargeable battery for uninterrupted monitoring.
16. Print ECG, SpO2, RESP, BP and temperature data with one-key
Performance:
ECG
Lead Mode 3-lead and 5-lead are optional
Lead Selection I, II, III, avR, avL, avF, V
Wave 5-lead: 2 channels
3-lead: 1channel
Gain ×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV
HR Measuring and Alarm Range
Range 15 ~ 300 bpm
Accuracy ±1% or ±1bpm, which is greater
Alarm Accuracy ±2bpm
Resolution 1 bpm
CMRR
Monitor ≥ 100 dB
Surgery ≥ 100 dB
Diagnosis ≥ 60 dB
Bandwidth
Surgery 1 ~ 20 Hz(+0.4dB,-3dB)
Monitor 0.5 ~ 40 Hz(+0.4dB,-3dB)
Diagnosis 0.05~75Hz(+0.4dB,-3dB); 76Hz~150Hz(+0.4dB,-4.5dB)
Calibration Signal 1 mV (Vp-p), ±5% Accuracy
ST Segment Monitoring
Measuring and alarm Range -0.6 mV~ + 0.8 mV
ARR
ARR Detecting Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY,
TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP,
PNC
Alarm Available
Review Available
Scan Speed for ECG Waveform is adjustable:
12.5mm/s accuracy ±10%
25mm/s accuracy±10%
50mm/s accuracy±10%
Respiration
Method R-F(RA-LL) Impedance
Differential Input Impedance >2.5 MΩ
Measuring Impedance Range 0.3~5.0Ω
Baseline Impedance Range 100Ω~ 2500Ω
Bandwidth 0.3 ~ 2.5 Hz
Resp. Rate
Measuring and Alarm Range 0~120rpm
Resolution 1 rpm
Measuring Accuracy ±2 rpm
Alarm accuracy ±3rpm
Apnea Alarm 10 ~ 40 S
NIBP
Method Oscillometry
Mode Manual, Auto, Continuous
Measuring Interval in AUTO Mode 1~90 Min
Measuring Period in Continuous Mode 5 Min
Measuring and Alarm Range 10~270mmHg
Alarm Type SYS, DIA, MEAN
Resolution:
Pressure 1mmHg
Cuff pressure ±3 mmHg
Accuracy ±10% or ±8mmHg, which is greater
Over-pressure Protection:
Adult Mode 315±10 mmHg
Pediatric Mode 265±10 mmHg
Neonatal Mode 155±10 mmHg
SpO2
Measuring Range 0 ~ 100 %
Alarm Range 0 ~ 100 %
Resolution 1 %
Accuracy
70% ~ 100% ±2%
0% ~ 69% unspecified
Pulse Rate(PR)
Measuring and Alarm Range 0~250bpm
Resolution 1bpm
Measuring Accuracy ±2bpm or ±2%, which is greater
Alarm Accuracy ±2bpm
TEMP
Channel dual-channel
Measuring and Alarm Range 0 ~ 50°C
Resolution 0.1°C
Accuracy ±0.1°C
Actualization Interval about 1 Sec.
Average Time Constant < 10 Sec.
Alarm responding Time ≤2min
EtCO2
Method Sidestream or Mainstream
Measuring Range for CO2 0~150mmHg
Resolution for CO2:
0.1 mm Hg 0 to 69 mm Hg
0.25 mm Hg 70 to 150 mm Hg
Accuracy for CO2:
0 – 40 mm Hg ±2 mm Hg
41 – 70 mm Hg ±5%
71 – 100 mm Hg ±8%
101 – 150 mm Hg ±10%
Respiration Rate>80BPM ±12%
AwRR Range 2~150 rpm
AwRR Accuracy ±1BPM
Apnea Alarm Available
IBP(Optional)
Channel dual-channel
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and Alarm Range -50~350 mm Hg
Resolution 1 mm Hg
Accuracy ±2% or 1mm Hg, which is greater
Display Mode 12.1" color TFT LCD with high-resolution
Power Supply 220V, 50Hz
Safety Classification class Ⅰ, type CF defibrillation-proof part
Physical Characteristic:
Dimension 310×140×263(mm)
Net weight 3.8Kg

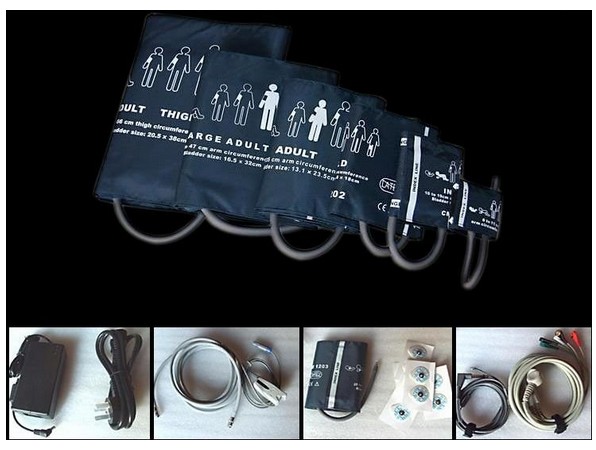

Accessories:
Adult SpO2 probe(5-pin)
| 1 |
| Adult NIBP cuff | 1 |
| Extending tube for blood pressure | 1 |
| ECG lead | 1 |
| ECG electrode | 1 |
| Temperature probe | 1 |
| Power cord | 1 |
| Thermal recording paper(optional) | 1 |
| User Manual | 1 |
