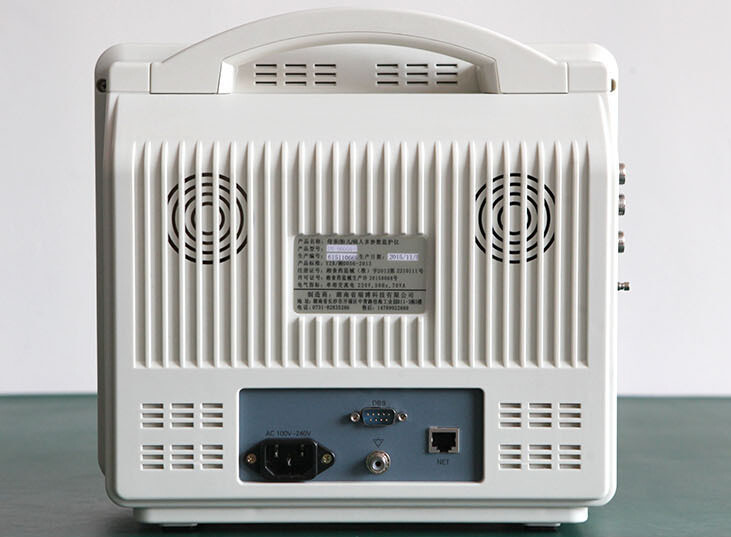

MSL -9000PLUS Multi parameter Veterinary Portable Patient Monitor
Color TFT LCD Display
Quick detail:
General parameters:
Size: 300mm× 230mm ×130mm
Weight: 3Kg (excluding accessories and embedded batteries)
Display screen: 12.1 inch TFT Color LCD Flat
Resolution: 800× 600
Mode: continuous operation
Description:
MSL-9000PLUS Multi-parameter can continuously monitor the patients
ECG, heart rate, noninvasive blood pressure (systolic pressure,
diastolic and mean arterial pressure), blood oxygen saturation,
respiration, body temperature and other important parameters signs
custody ECG waveform screen display waveform, respiration, blood
pressure, oxygen waveform measurements, heart rate, respiration and
blood oxygen measurement data frequency, temperature and other
parameters, such as oxygen ECG waveform and waveform data can be
realized intervals. The trend has also shown graphic form and
function to facilitate medical diagnosis.
Applications:
MSL-9000PLUS multi-parameter monitor that can be widely used in
surgery, emergency, ICU, CCU, and various clinical Guardianship,
due to the import of high brightness original True Color TFT LCD,
makes a clear visual interface components; Also due to the small
size and light weight features, both for the patient's hospital
bed. It can also be used for field and ambulances and other mobile
environment for adults and children who apply.
Specification:
ECG measurement:
Leads choices: All, I, II, III, aVF, aVR, aVL. V1--6 chest leads
showed
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
Frequency: 0.5 Hz - 100 Hz
Common-mode signal inhibition: More than 70 dB
Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.
HR: ± 5 bpm
Precision calibration signal: 1mv(peak, ± 3% accuracy)
ST Detection: measurement range (-1.0mV----+1.0mV)
Using Standard: meet the ANSI / AMI EC13 -1992 standard
Response time: 1s
Alarm: Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling: 1-255 bpm adjustable
Threshold: 0-254 bpm adjustable
RESP Breath
Breathing frequency range: 0-60 bum
Accuracy: ± 1brpm
Response time: 1s
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
Alarm: Sound and Light
Alarm range: (numerical preset alarm over)
Ceiling: 10-100 bpm adjustable
Threshold: 0 -99 bpm adjustable
NIBP measurement
Technology: Oscillometric
Mode: manual / automatic
Measurement units: mmHg / kpa
Protection: Double security protection
A measurement time: less than 45 S
Scope: Pressure Cuffs 0-250 mmHg
Blood pressure measurement accuracy: ANSI /AAMI, SP10-1992 standard
error and standard deviation of the average value of the initial
Inflatable cuffs: 180 mmHg (120 mmHg children newborn 70 mmHg)
Inflatable cuffs follow: original SBP: + 30 mmHg
Blood pressure measuring range:
Systolic blood pressure: 60-250 mmHg
Diastolic blood pressure: 40-220 mmHg
Pressure on the average: 45-235 mmHg
Response time: 1s
Alarm: Sound and Light
Preset range: report (Numerical exceed preset alarm)
Systolic blood pressure maximum: 1-255 mmHg adjustable
Threshold: 0-254 mmHg adjustable
Diastolic blood pressure ceiling: 1 -255 mmHg adjustable
Minimum standards: 0 -254 mmHg adjustable
Use standard: compliance with the ANSI / AAMI SP10-1992 standard
Spo2 measurement
Range: 0-100%
Accuracy: 1%
Resolution: 1%
Pulse frequency: 20-250 times / min
Response time: 1s
Alarm: Sound and Light
Preset range: report (Alarm over preset numerical)
Ceiling: 1% - 100% adjustable
Threshold: 0% - 99% adjustable
TEMP measurement:
Technology: thermostat temperature probe
Measuring range: 20 ° C-45 ° C
Temperature resolution: 0.1%
Accuracy: ± 1 ° C
Response Time: 1s
Alarm: Sound and Light
Preset range: report (numerical preset alarm over)
Maximum: 20.1 ° C-45.5 ° C adjustable
Threshold: 20 ° C-45.4 ° C Adjustable
Trend Graph:
Types: Graphical /tabular
Memory storage: 48 hours (not restart preservation)
Data interval: 30 seconds
Graphic form: one graph per channel.
Tabular form: graphics are the parameters with 11 per trip (and
time parameters). One page 15 firms external
Power
AC power supply: AC 180-220V, 50Hz-60Hz. 1A maximum current
Temperature: 0-40 ° C
Storage temperature: -20 ° C-50 ° C
Working humidity: 5-95% relative humidity, non-condensing
Humidity storage: 5-95% relative humidity, non-condensing
Altitude: 0-1000 feet (working condition)
Whole Power: not more than 40W
