CE FDA TLC5000 Portable Patient Monitor 12 channels ECG Holter
Machine for Family
Model Number: TLC5000
Introduction:
Dynamic ECG Systems TLC5000 contain recorder & analysis software.
Recorder is an easy- to -use unit, which collects 12-lead ECG
waveform synchronously and records continuously for 24 hours. In
addition, it also reviews ECG waveform.
It is easy for you to use analysis software which plays back ECG
waveform stored in ambulatory recorder and achieves kinds of
analysis functions, such as arrhythmia, HRVA, QTDA, TWA, etc.
Quick Details:
1.Dynamic ECG Systems TLC5000
2.2 AA size batteries
3.24 hours monitoring
4.12 leads
5. 12 channels
Technical Parameters
| Number of channels | 12 channels |
| Sampling rate | 10000Hz |
| Sampling accuracy | 12bit |
| Recording time | 24 h |
| Power | 2 batteries in size 5 |
| Interface | USB2.0 |
| Scale voltage | 1mV±5% |
| Standard Sensitivity | 10mm/mV±5% |
| Noise level | ≤30μV |
| CMRR | ≥60dB |
| Feathers of low frequency | Time constant>3.2s |
| Scan speed | 25mm/s±5% |
| Enduring polarization voltage | ±300mV |
| Least measure signal | 50 µV p-p |
| Product safety type | Type B (Internally powered) |
| Size | 111mm(L)*60mm(W)*25mm(H) |
| Net Weight | 102g (Without battery) |
Major Features:
1. With advanced design and technology, the recorder can work
stably, dependable and durable.
2. Be provided with the capability of anti-jamming and shock-pro.
3. Small volume with OLED screen. The resolution is 160*128.
4. Be provided with functions of waveform preview, record review
and event marking.
5. Accurate record of the start time of the data sampled owing to
the real time clock of itself.
6. Avoid damage owing to the repeating inserting and pulling out by
using the inbuilt TF card to storage the data.
7. The maximum capability can be 2GB, so the original data can be
saved perfectly by no compression.
8. The average review time of single case can be less than 40
seconds by using interface of USB 2.0.
9. Record waveform details inextenso by the design of high
precision and sampling frequency.
10. Record the state of pacemaker exactly by higher sampling
frequency.
11. International standard of 12 leads. Record 24-hour DECG with
the same standard of the ECG.
12. 12 channels

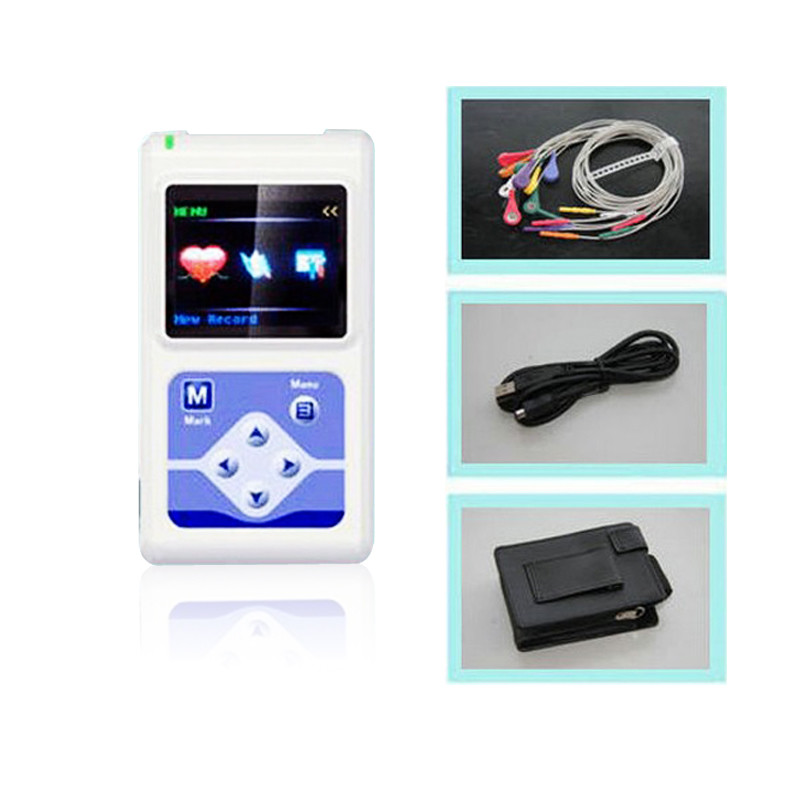

Sell in Standard:
USB data line
A CD (analysis software)
ECG Leads
An User manual
Carry bag
Electrode patch
Dongle
